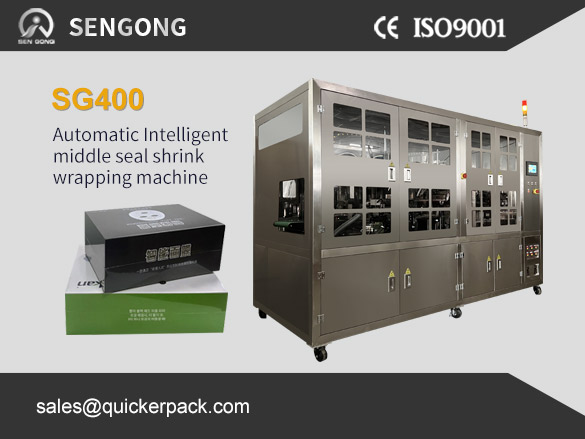

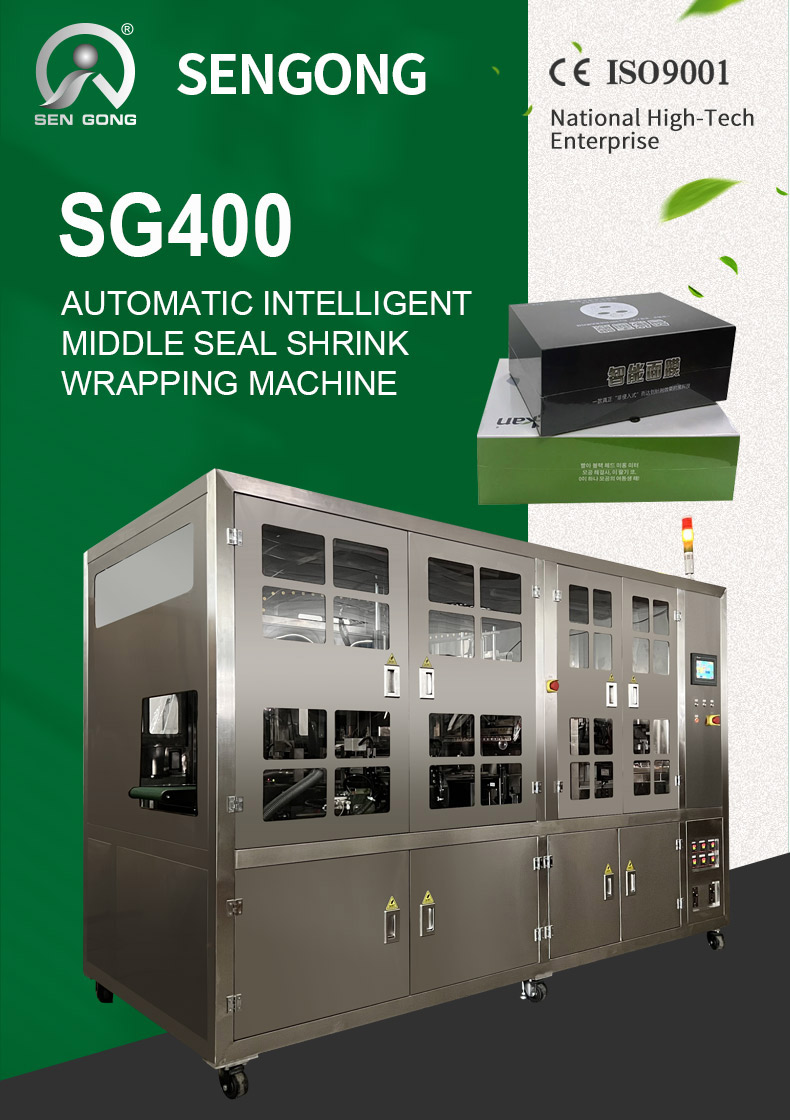

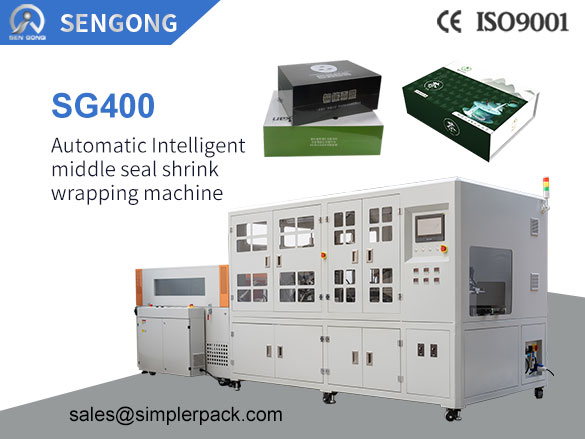

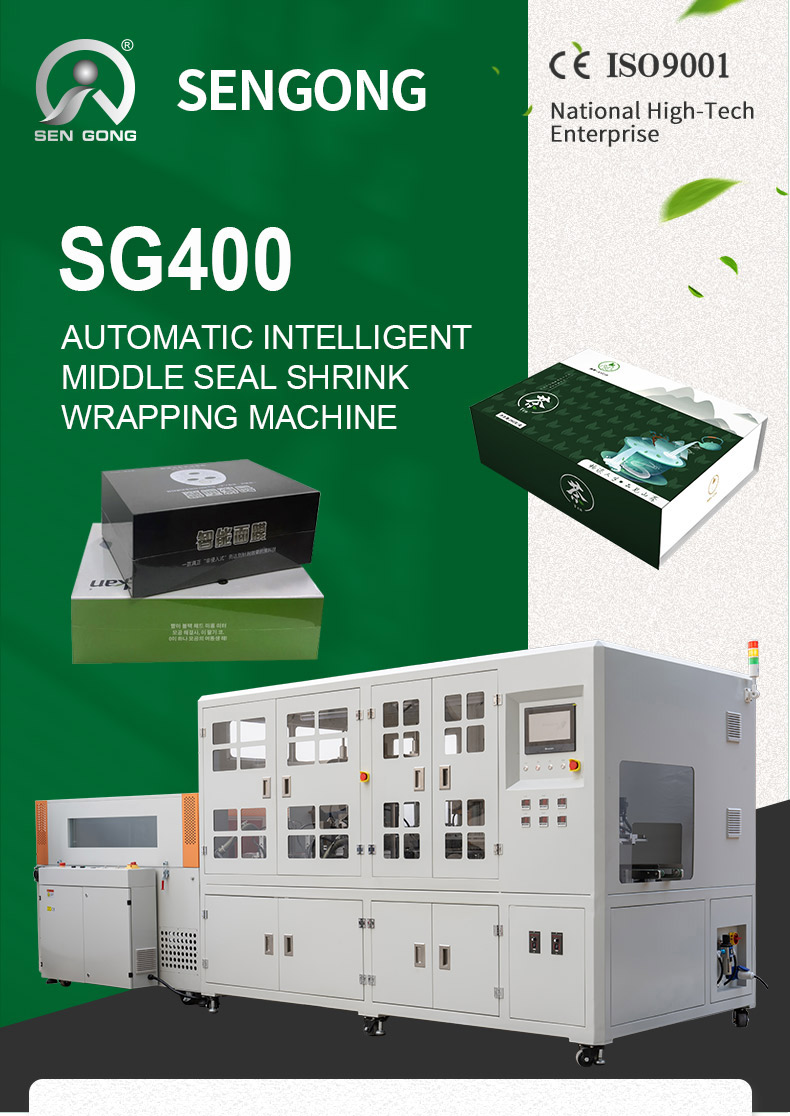

SG400 Automatic Intelligent middle seal shrink wrapping machine
Intelligent middle seal shrink wrapping machine,Suitable for various square packing box with outer film.
Support Hotline:

+8618859211427

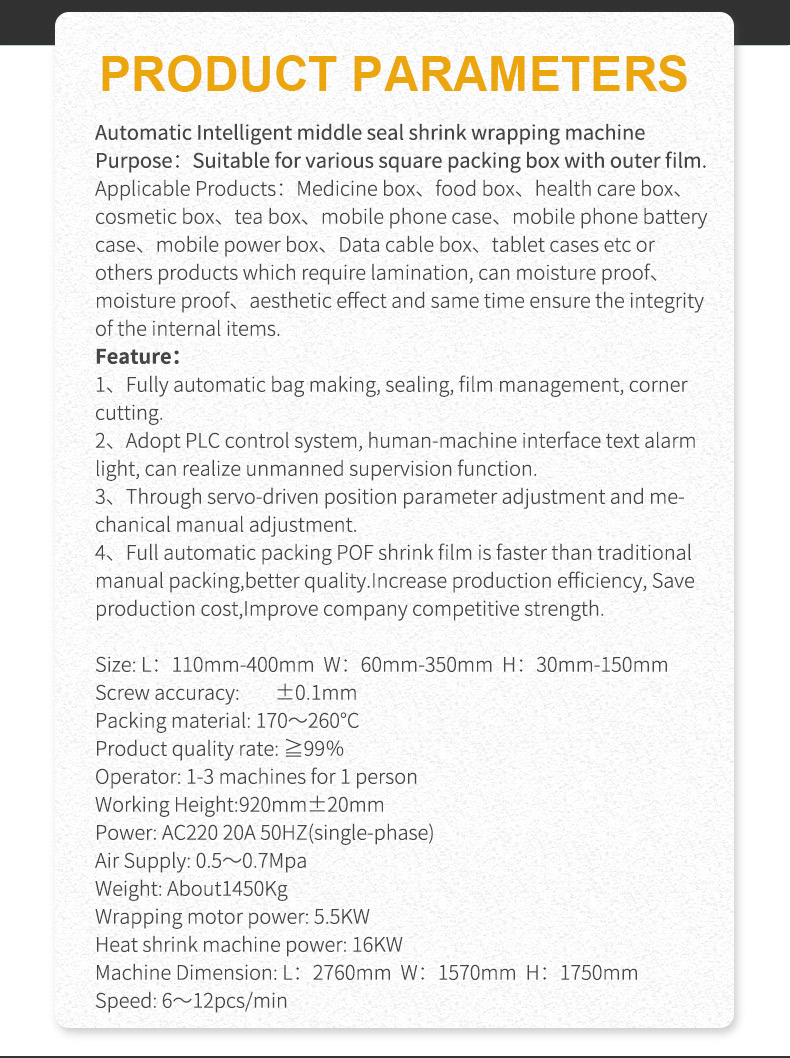

Product Description

Automatic intelligent middle seal shrink wrapping machine

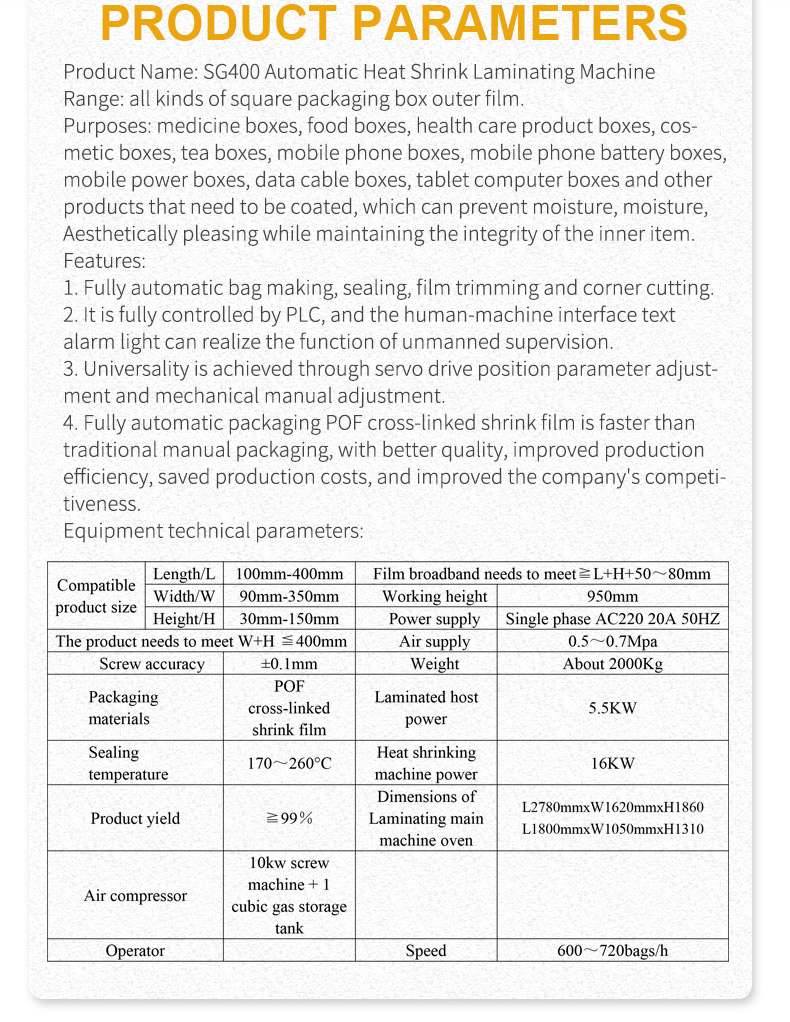

Product model
Product name:Automatic Intelligent middle seal shrink wrapping machine
Purpose:Suitable for various square packing box with outer film.

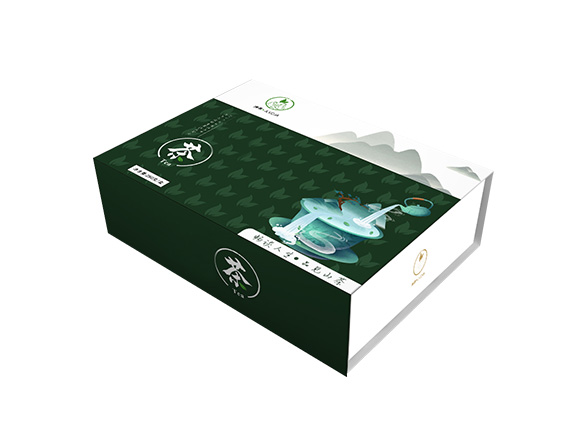

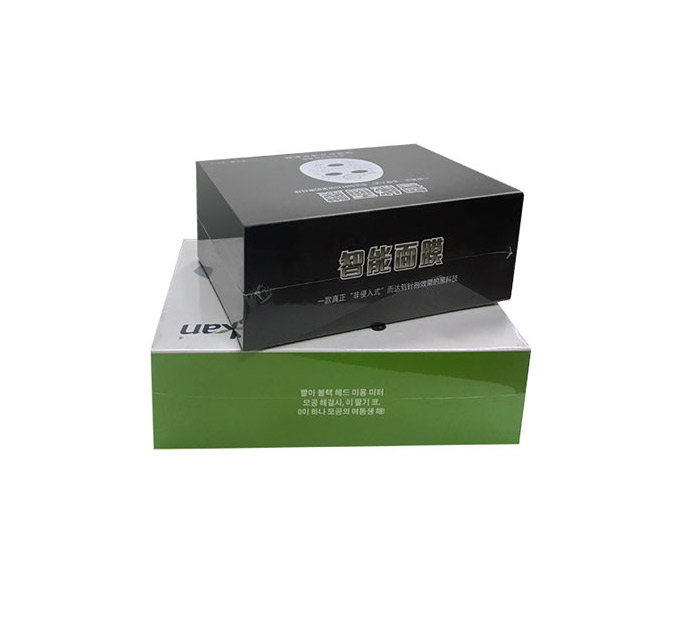

Applicable Products:Medicine box、food box、health care box、cosmetic box、tea box、mobile phone case、mobile phone battery case、mobile power box、Data cable box、tablet cases etc or others products which require lamination, can moisture proof、moisture proof、aesthetic effect and same time ensure the integrity of the internal items.
Feature
1、Fully automatic bag making, sealing, film management, corner cutting.
2、Adopt PLC control system, human-machine interface text alarm light, can realize unmanned supervision function.
3、Through servo-driven position parameter adjustment and mechanical manual adjustment.
4、Full automatic packing POF shrink film is faster than traditional manual packing,better quality.Increase production efficiency, Save production cost,Improve company competitive strength.


Size: L:110mm-400mm  W:60mm-350mm  H:30mm-150mm
Screw accuracy: ±0.1mm
Packing material: 170~260°C
Product quality rate: ≧99%
Operator: 1-3 machines for 1 person
Working Height: 920mm±20mm
Power AC220 20A 50HZ(single-phase)
Air Supply: 0.5~0.7Mpa
Weight: About1450Kg
Wrapping motor power: 5.5KW
Heat shrink machine power: 16KW
Machine Dimension: L:2760mm  W:1570mm  H:1750mm
Speed: 6~12pcs/min
