It is suitable for inner and outer tea bag packing of small granular products, such as tea leaves, medicinal tea and health care tea, etc.
1. This machine is an automatic multi-functional tea packaging equipment with a new heat sealing type.

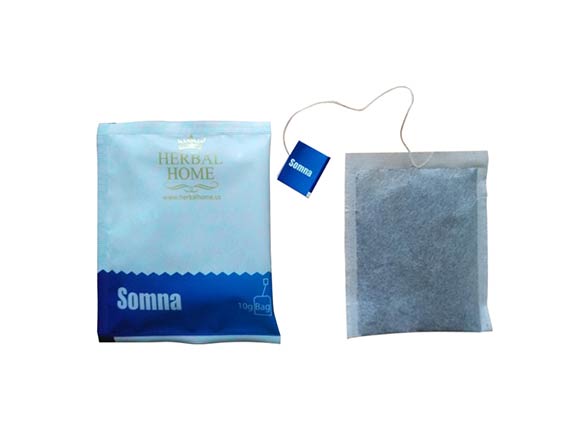

2. The inner and outer bag is formed at the same time, avoid your direct contact with the packing material and improve working efficiency. Inner bag is made of filter paper optional with thread and tag attached, and outer bag is made of composite paper or kraft paper.
3. The biggest advantage is: tag attaching and outer bag making can adopt photoelectric positioning.
4. Packing capacity, inner bag and outer bag size can be easily adjusted according to different requirements in order to achieve the best packaging results, improve product appearance and enhance the value of the product.

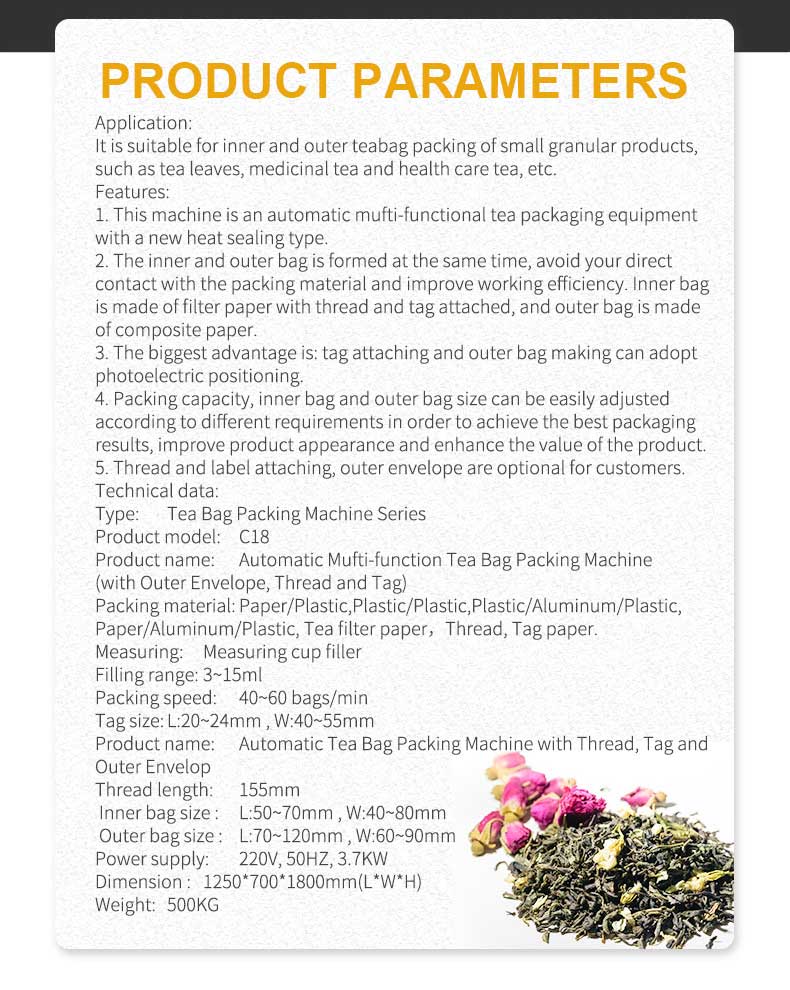

l Technical data:
Machine type: Tea Bag Packing Machine Series
Machine model: C18-2

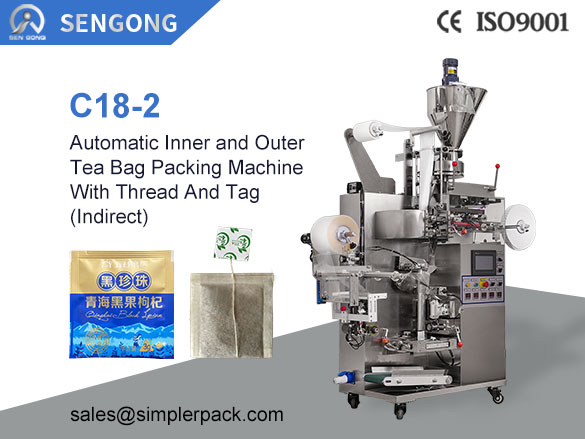

Machine name: Automatic Multi-function Tea Bag Packing Machine（Indirect）
(Optional with Outer Envelope, Thread and Tag)
Packaging material: Paper/Plastic,Plastic/Plastic,Plastic/Aluminum/Plastic,
Paper/Aluminum/Plastic, Tea filter paper, Thread, Tag paper.
Measuring: Volumetric cup filler
Filling range: 3~15ml
Packing speed: 40~60 bags/min
Tag size: L:20~24mm , W:40~55mm
Thread length: 155mm
Inner bag size : L:50~70mm , W:40~80mm
Outer bag size : L:70~120mm , W:60~90mm
Power supply: 220V, 50HZ, 3.7KW
Machine dimension : 1250*700*1800mm(L*W*H)
Machine weight: 500KGS
