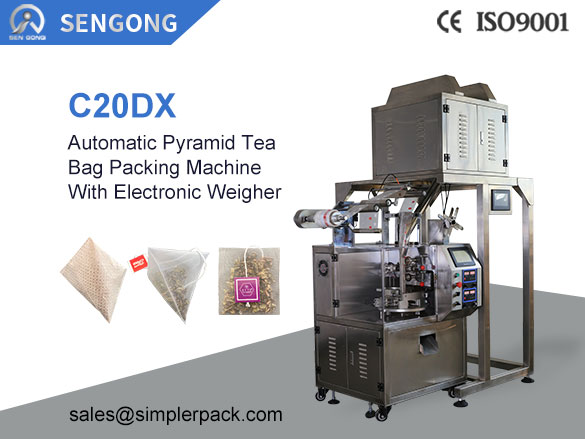

Automatic Pyramid Tea Bag Packaging Machine C20DX
Automatic Pyramid Triangle Tea Bag Packaging Machine, standard match with 4 Head Weighers, also can match 6 weighers and 8 weighers. this is only suiatble for inner bag, inner bag can be both triangle bag and flat bag. it suitable for loose leaf tea, herbal tea, health care tea, flower tea, and Chinese local tea like Darjeeling, Assam, Ceylon, etc.
Support Hotline:

+8618859211427

Product Description

C20DX Automatic Pyramid Tea Bag Packaging Machine with 4 Head Weighs

Application:
It is suitable for packing kinds of teas such as loose leaf tea like black tea and oolong tea, herbal tea, health tea, rose tea, jasmine tea, etc.Features:
1. The feasible package materials of the triangle bag machine is nylon, PLA, non-woven fabric materials imported from Japan, which is non-toxic, non-bacteria, heat-resistant, high-quality and food-grade, conforming to our national safety inspection standard.
2. The machine can uses a unique sealing method - ultrasonic. It can seal tightly, safely, and reduce the width of the extra edge, avoiding any waste of packing materials.
3. The machine can switch the bag shape between pyramid(triangle) and flat(rectangle), and also the sealing method can be switched into back sealing.
4. The machine can be linked with the outer pouch packing machine.
5. Each electric scale of this machine is independent, each one can be operated alone.

Technical data:
Machine type: Tea Bag Packing Machine Series
Machine model: C20DX
Machine name: Export-oriented Automatic Pyramid Tea Bag Packing Machine with 4 Head Weighs(Improved)
Packing material: Nylon material imported from Japan, non-woven fabric, 100% biodegradable transparent materials, PET, PLA, etc
Measuring method: Electric scale filling
Filling range: 1-10g/bag, accuracy: ≤ ±0.1g/bag
Packing speed: 30~60 bags/min
Packing roll width: 120, 140, 160(mm)
Sealing length: 50, 60, 70, 80(mm)
Sealing method : Sealing and cutting by ultrasonic
Qty of sealing device : 2 sets
Air supply: ≥0.6MPa(can be equipped with air compressor)
Motor power: 220V, 50HZ, 1.2KW
Dimension: 1800*900*2500mm(L*W*H)
Machine weight: 600KG


Automatic Pyramid Tea Bag Packaging Machine working vedio
