VACUUM PACKAGING MACHINE SERIES

Vacuum packaging machine series

Type: Tea & Coffee Bag Packing Machine Series

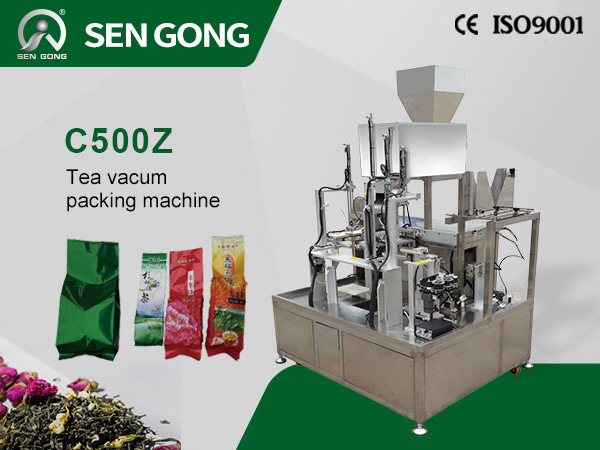

Product model: C500Z

Product name: Vacuum Packaging Machine

Purpose: Granular or broken tea, coffee etc

Feature:

1.The PID temperature regulator is used to control the sealing temperature, whichcan ensure the smooth sealing and improve the yield.

2.Adopt PLC to control the movement of the whole machine, touch screenoperation interface.

3. lt adopts double shunt packaging to improve the efficiency of the whole machine.4. lt can count and pack the inner bag in a triangular bag, or combine the large particles into one bag for packing after counting.

5. it is equipped with outer bag coding equipment.(At the same time, print theproduction date and production batch number).

6. it has a bottom leveling and compacting vibration mechanism to ensure that the

bottom is compacted before packaging.

Filling range: 1-1000g

Packing speed: 9-13 bags/minute

Bag size: L180-350mm W70-180mm

Air supply : 0.5~0.6Mpa

Air consumption: 0.3m3/min

Power: 220V,50HZ,3.7KW

Weight: 780KG

Dimension : L1800mmxW1400mmx1900mm (Not include electronic weigher)
